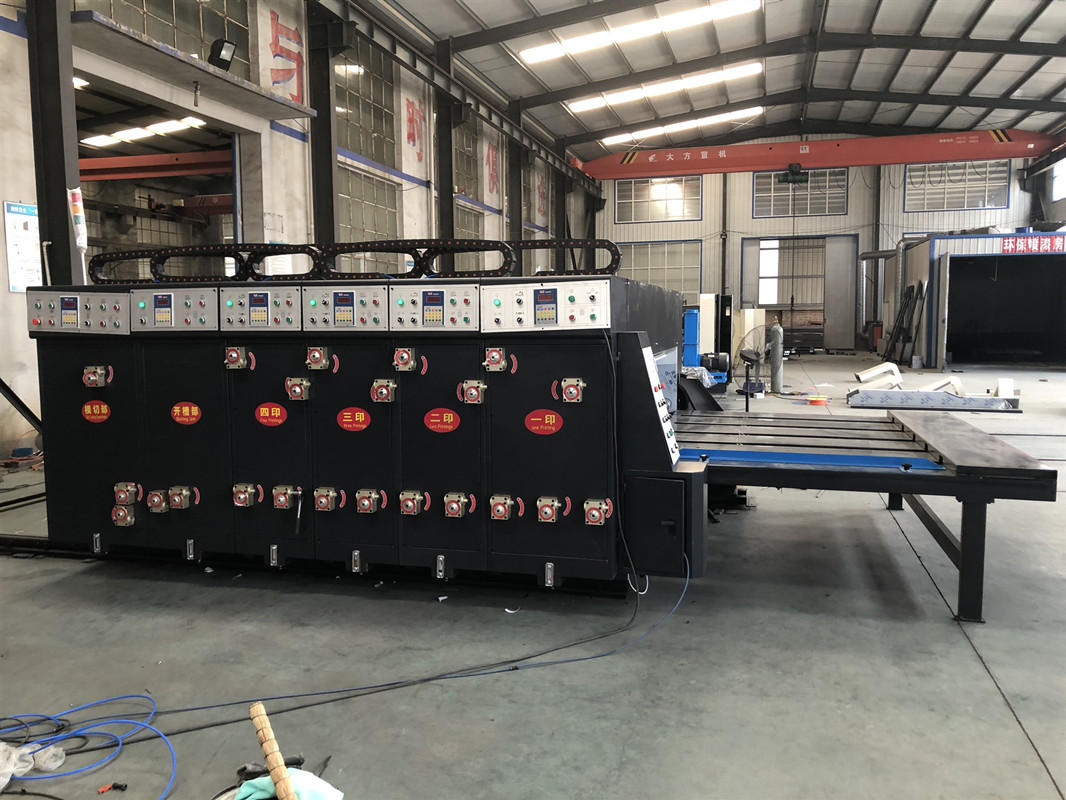

Good Quality Chain Feeder Mulit Colors Corrugated Cardboard Printer Slotter With Rubber Type

YJ-C-1426 Chain Feeder Mulit Colors Printer Slotter With Rubber Type

Function and features:

1.This machine used to make corrugated box, flexo waterbase ink printing, lower cost than ink

2. Machine include feeding table, printing unit, slotting unit(option) die-cutting unit(option), it can do printing, slotting, die-cutting one time, save labor.

3. Machine used chain table, side lay gauge, variable frequency motor drive adjust speed.

4. Planet gear phase adjustment by motorized in 360 degree. Working running or stop, fast and accurately.

5. Machine units move by motorized and locked by pneumatic

6.Rollers do chrome plated and polished

7. Crosshead slide used in main gear, gear gap not change when roll adjusting, make sure high appreciate.

8.Main gear made from 45# carbon steel with high frequency quenching, key free connecting ring feature in reduce wear, long printing registering.

9.Wall is 40mm cast iron with heat treatment, good performance, non-defrmation.

10. Transmission part adopt spray lubrication, thick iron plate ink box, avoid ink release, prolong use life and precision.

11. Machine units move by motorized, the alarm sounds when units are shifting to secure the operators safety

12. The counter for control production quantity

Feed unit

• Chain table feed sheet one by one manually.
• 4 chains on the table, 3pusher in one chain.
• Abrasion resistance materials as the support of the bottom of chains, fast running, low noise .
• Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.
• Feeding error ±1.5mm.

Printing unit

• Printing roller, feeding roller, pressure roller made from good quality steel, thick seamless steel pipe, all grinded and chrome plated
• Anilox roller made from good quality steel, 200/220mesh per inch, much 45 lines flexo printing plate is available.
• Rubber roller used good quality wearable, grease-proofness, acid and alkali resistance rubber, with crown machining, good ink effect.
• Printing drum gear no-gap adjust, pressure for best printing.
• Adopt planet style electrical phase adjustment of 360 degrees whatever operating and stopping, quickly
• Printing roller movable left to right by hand, range 30mm, adjust during machine run and stop.
• Diaphragm pump feed ink, pneumatic lift roller to ink.
• Inking roller can be detached from printing plate automatically to avoid damage the printing plate.
• Inking roller equipped idling running device to prevent ink from being dried when machine stop.

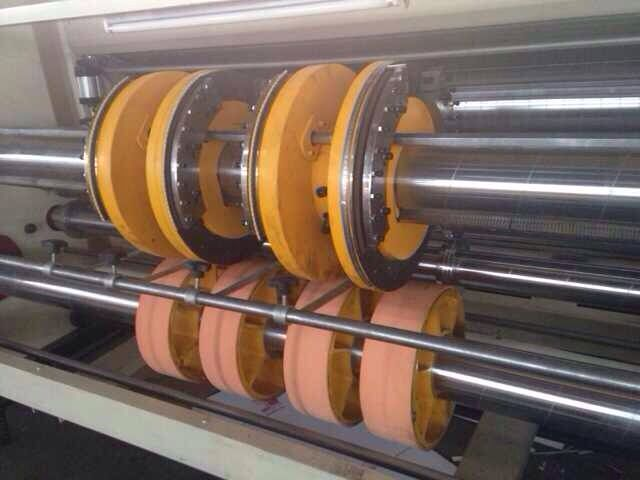

Slotting unit (rubber type)

• The slotting knives die can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
• The slitting knives die can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
• The back-slotting knife (Height of the box) four knives adjustment synchronous, easy working.
• Main gear used key-free connection, keep long time slotting accurately.
• Electric phase adjustment in 360 degree, both running and stop.
• 7mm alloy steel slotting knives with indent heat treatment to enable grinding teeth sharp edge.
• Slotting precision: ±1.5㎜(cardboard is flat)
