Middle speed Printing slotting die-cutting & stacker Machine
Main Technology parameters
| Model | YJ150-1022 | YJ130-1224 | YJ120-1426 |
| Machine inside width (mm) | 2400 | 2600 | 2800 |
| Max feeding paper siz(mm) | 1000*2200mm | 1200mm*2400mm | 1400*2600mm |
| Max effective printing size(mm) | 1000*2000mm | 1200mm*2200mm | 1400*2400mm |
| Min coverage size(mm) | 350*700mm | 350mm*700mm | 350mm*700mm |
| Design speed (pcs/min) | 150pcs/min | 130pcs/min | 120pcs/min |
| Working speed (pcs/min) | 130pcs/min | 120pcs/min | 100pcs/min |
| Standard Thickness of printing plate | 6mm | 6mm | 6mm |
| Printing precision | ±0.5mm | ±0.5mm | ±0.5mm |
| Thickness of cardboard | 1.2-9mm | 1.2-9mm | 1.2-9mm |
| Wall thickness | 40mm | 40mm | 40mm |
| Main motor power | About :15kw | About :15kw | About :15kw |
Performance and Characteristics:
- The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching,die cutting and so on.
- Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
- All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
- Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
- The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
- The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
- Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC control with touch screen.
- The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
- Feeding unit
| No | Item | Function and configuration |
| 1 | Machine unit move | - Motorized control machine units move, the warming belt is alarming when moving, make sure working safety.
- Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation.
- When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase, ensure gear engaged correct when machine units lock.
- Machine unit adopts pneumatic locking system.
- Main motor frequency conversion control, energy saving. Main motor with start protecting device, machine can not run when machine units aren’t lock.
|
| 2 | Roller type lead edge feeder | - Adopts lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly.
|
| 3 | Feeding roller | - Top feed roller is made of high qualified steel, the outside be wrapped wear-resisting rubber, don’t destroy flute, guarantee feeding precision, improve the printing accuracy.
- Bottom roller used high-quality steel, precision grinding, knurling, hard chrome plated paper roll hand mode rapid clearance of fine-tuning self-locking device, equipped with a dial display to adjust direction and numerical.
|
| 5 | Baffles | - The left and right baffles adopt electric control, the front baffles space adopts manual sync adjustment, the back baffle box be adjusted by motorized.
|
| 7 | Automatic zero device | - After finishing the work order ,back to zero position
|
2. Printing unit
| No | Item | Function and configuration |
| 1 | The printing roller | - Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly
- Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast.
- Full hang-plate device, 10mm hang-plate strip is available.
- Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version,unloading version.
|
| 2 | Impression roller | - Seamless steel tube surface is grinded and plated hard chrome, do balance correction, running stable.
- Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
|
| 3 | Feeding roller | - Use thick good quality steel pipe, professional manufacturing, do balance processing, the feeding roller adopt fine grinding to be molding.
- Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
|
| 4 | Anilox roller | - Seamless steel tube surface being grinded and plated hard chrome, balance correction, smooth operation
- Mesh amount 200, 220,240,260 or according to customers' demand
- Pneumatic lift-down mechanism(while feeding, the anilox roll go down automatically; stop feeding, it go up automatically )
- Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
|
| 5 | Rubber roller | - Adopt high quality stemless steel pipe, the surface be grinded, hard chrome plated, balance correction, running smoothly
- Special grinded crowning, work well
|
| 6 | Phase adjustment | - Planetary gear structure
- Printing phase adopts 360 degrees electric adjustment (either run or stops)
- Printing roller manual horizontal adjustment, adjustment range ±10mm
|

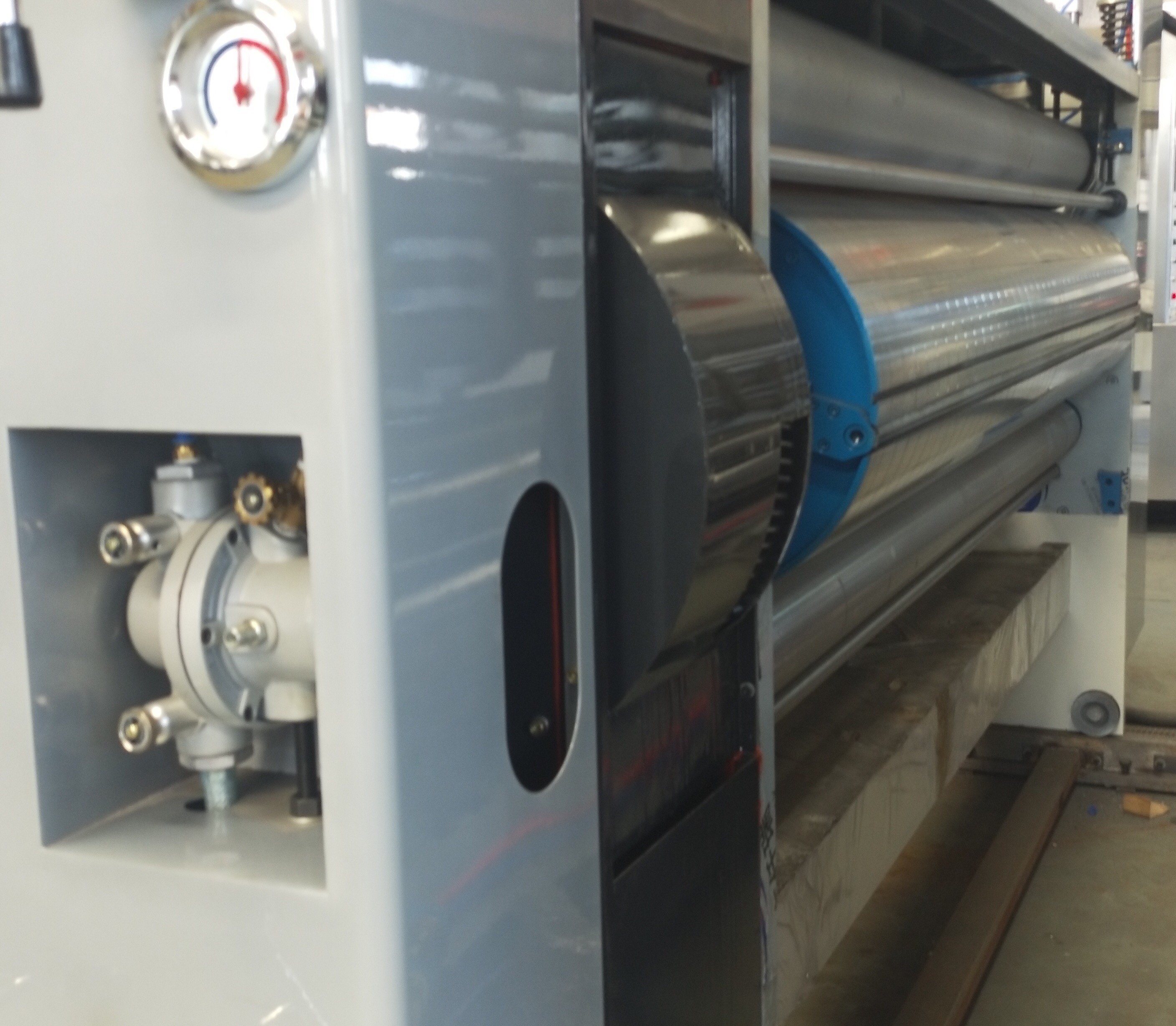

| 7 | Ink supply system | - With pneumatic diaphragm pump to supply ink, automatically circulation, work stable and it is easy to operate and maintain.
- Ink filter, filter impurities, more better printing
|
| 8 | Printing phase fixed device | - When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position
|
| 9 | Zero-return and memory | - After washing the printing plate, press reset button the printing roller will back to the original printing position.
|

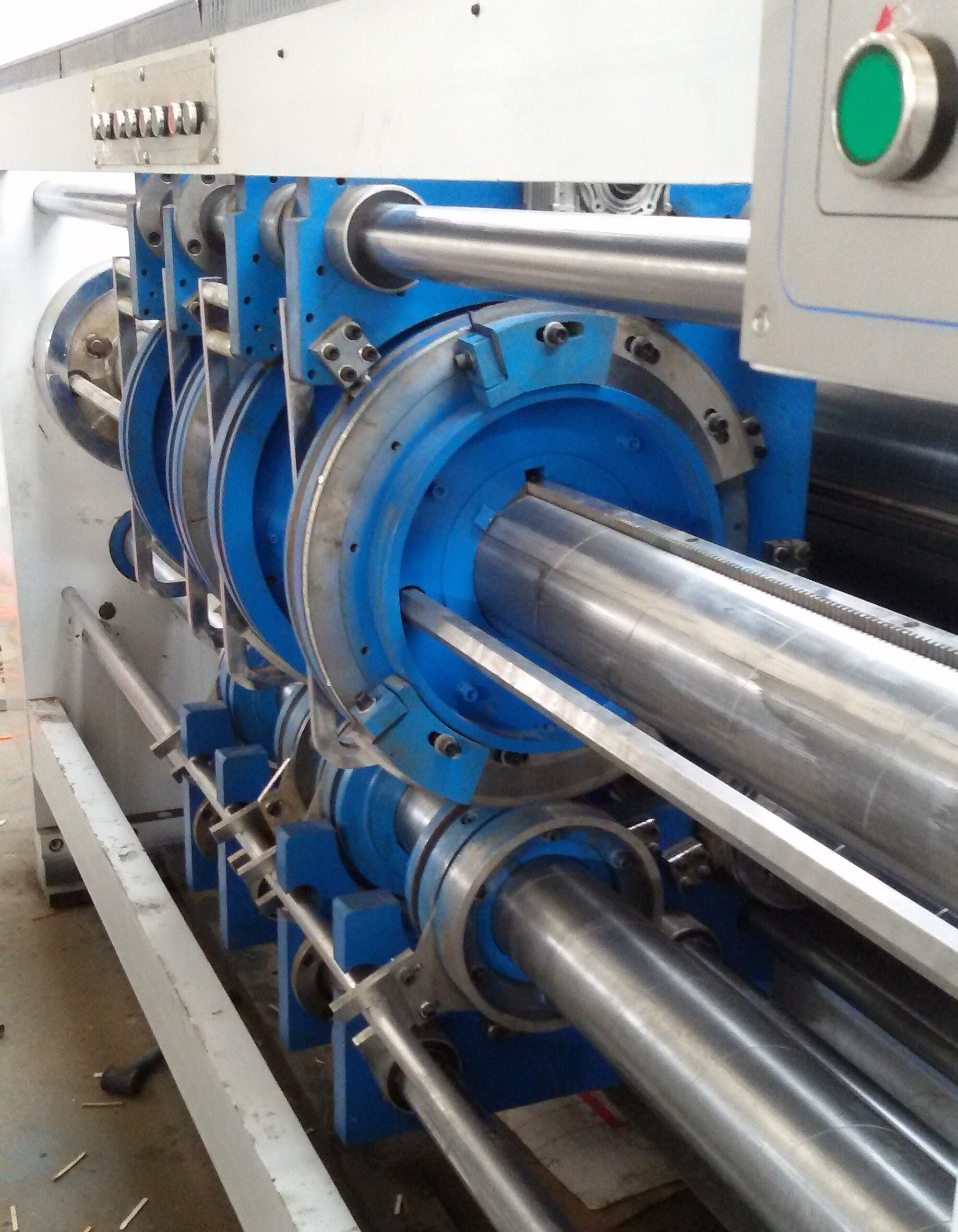

3 .Slotting unit
| 1 | Crease wheel | - Using high quality steel, with grinding process and plating hard chromium.
- Pressure roller surface be grinded and hard chromium plating ,do balance processing
- Equipped special design wheel is keep from crack.
- Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
|
| 2 | Slot knife adjustment on axial direction | - Select seamless steel pipe, after fine grinding and balance treatment, smooth operation.
- Slotted knife width 7 mm, alloy material, heat treatment grinding, tooth profile slotting knife, sharp knife edge, high accuracy.
- The height of box is adjusted synchronously by four knives, and the slotted blade adopts four knife synchronous adjust manually
- Hand-tuned fast clearance fine-tuning self-locking device, equipped with dial to show adjustment direction and value
|
| 3 | Slotting phase adjustment | - Structure of planetary gear type
- Slotting phase adopt 360 degree electric synchronous adjustment.
|
| 4 | Manual sync adjust horizontal movement | - Slotting die and crease die move together manually
|

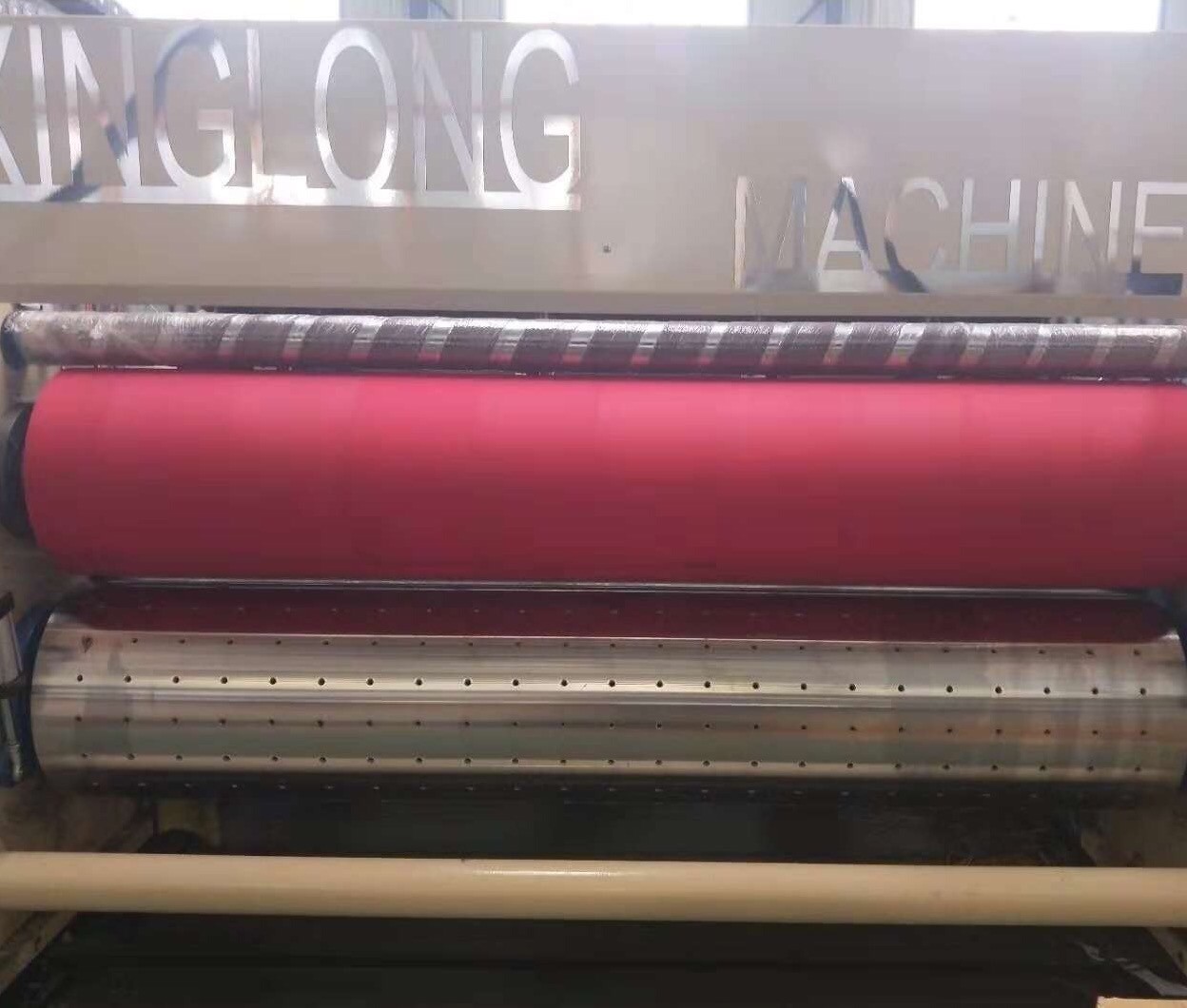

4. Die cutting unit
l Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.
- Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber
- When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.
- Adopt high-quality Germany Depair rubber pad.
- The roller is made of cast steel, with a wall thickness of 30 mm,
- Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.
- Electrically adjusted phase die-cutting position
- Include waste paper discharging device
5. Stacker unit
Use and characteristics
◆ Design speed: 150m/min
◆Maximum stacking length of gantry: 2800mm
◆ Upper gantry stacking, electric or hydraulic lift.
◆ The whole wide belt conveys the paper neatly and smoothly;
◆Electric stacking, and collection of cardboard, can make the cardboard storage height;
◆ Photoelectric measurement of stack height
